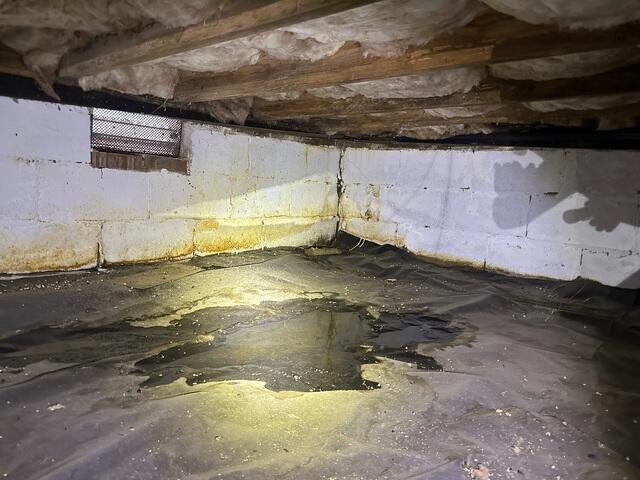

Water Intrusion Warning Signs: Standing Water & Wall Stains in Crawl Space - Winston-Salem, NC
This photo captures standing water on top of the crawl space vapor barrier, along with heavy staining on the foundation walls both signs of chronic water intrusion. The moisture presence suggests poor drainage and ongoing humidity issues, which can contribute to mold growth, musty odors, and long-term structural damage if left untreated. These visible symptoms are clear indicators that the crawl space environment is being compromised by excess water and poor ventilation.

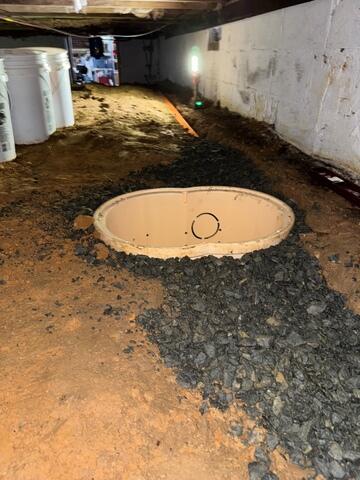

Sump Pump Pit Installation Begins to Combat Crawl Space Water Intrusion - Winston-Salem, NC
Following the discovery of standing water and heavy staining in the crawl space, this photo shows the early stage of the solution: the installation of a sump pump system. The pit has been placed in a strategic low point of the crawl space where water tends to collect. Crushed stone surrounds the pit to aid in drainage and help direct water efficiently into the sump basin. This marks the start of an interior water management system designed to remove excess moisture and prevent future water buildup under the home.

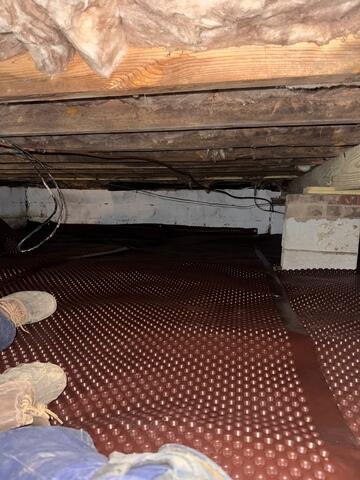

Dimple Drainage Mat Installation Creates Water Channeling System - Winston-Salem, NC
After addressing the standing water with a sump pump installation, this next step in the crawl space solution involves laying down a dimple drainage mat across the floor. This specialized material features raised dimples that create air gaps beneath the surface, allowing any groundwater or moisture to flow freely toward the sump basin. It serves as the foundation for the full encapsulation system and plays a critical role in keeping the crawl space dry by directing water away from vulnerable areas. This installation is a key part of the interior drainage strategy for long-term moisture control.

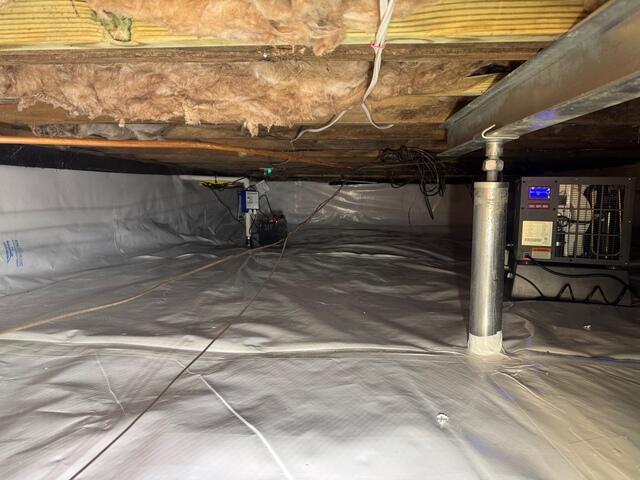

Full Crawl Space Encapsulation and Dehumidifier Installed - Winston-Salem, NC
In this final stage of the project, the crawl space is fully encapsulated with a durable vapor barrier and equipped with a SaniDry Sedona dehumidifier to maintain low humidity levels. Alongside moisture control, this system includes SmartJack crawl space supports, which are visible in the photo. These galvanized steel piers are designed to lift and stabilize sagging or weakened floor joists caused by prolonged moisture exposure. Excessive water and humidity in crawl spaces can lead to wood rot, mold growth, and softening of structural beams compromising the integrity of the home's foundation over time. By addressing both the moisture problem and structural instability, this solution provides lasting protection, helping preserve property value and create a healthier living environment above.

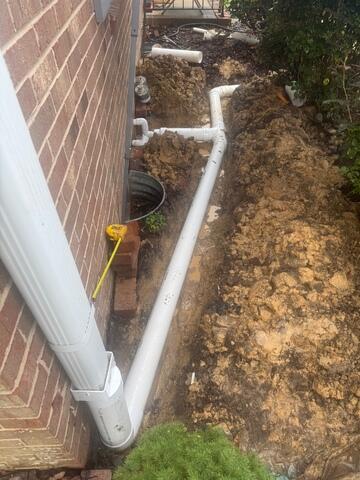

Downspout Extension and Drain Line Installation to Protect Foundation - Winston-Salem, NC
This photo captures the installation of an underground drainage system designed to reroute roof runoff away from the foundation. Water from the downspouts is now directed into buried PVC piping, which safely channels it away from the home's perimeter. Prior to this installation, excessive water near the foundation likely contributed to the crawl space moisture issues and increased the risk of foundation settlement. By relocating the discharge point, this system helps prevent soil erosion, water pooling, and hydrostatic pressure around the home-key factors in maintaining a dry, stable foundation.

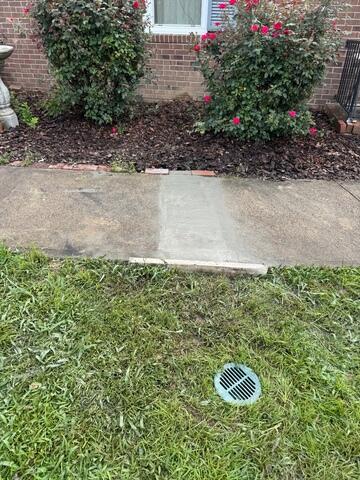

Clean Finish: Discreet Drainage Outlet and Concrete Restoration - Winston-Salem, NC
The final touch to this drainage installation highlights both functionality and curb appeal. Water collected from the downspouts is now safely discharged to this discreet lawn drain, positioned away from the home's foundation. A small section of the sidewalk was removed and cleanly repoured to allow the drainage line to pass beneath, leaving a smooth and minimal finish. The result is a subtle, non-intrusive solution that preserves the landscape's appearance while ensuring long-term protection against water intrusion.
