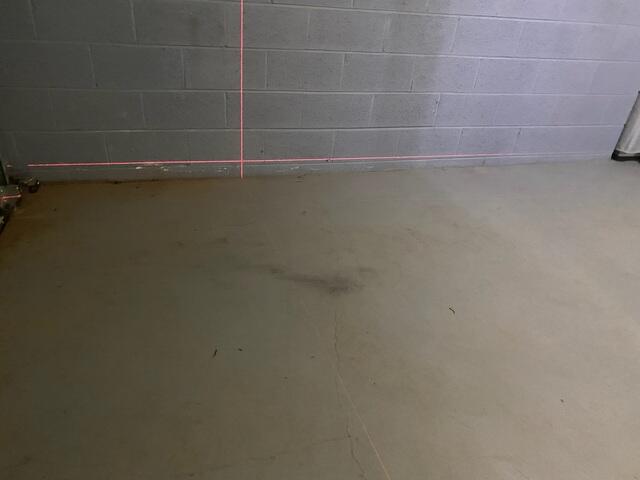

Identifying the Problem: Interior Slab Cracks and Settlement
This photo shows the initial signs of foundation settlement inside the home visible cracking across the concrete slab floor. The use of a laser level highlights elevation changes, confirming that the floor had shifted over time. This crack pattern was a clear indicator of underlying structural issues, which led to the decision to install push piers and inject PolyLevel foam as part of a full stabilization plan. This photo sets the stage for the solution shown in the next images.

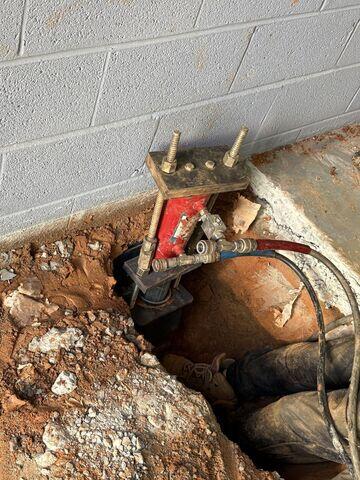

Installing Push Piers for Foundation Stabilization
In response to the slab cracking and foundation settlement seen earlier, our team installed push piers beneath the footing to permanently stabilize the structure. This photo captures one of the piers mid-installation, where hydraulic equipment is used to drive the pier deep into load-bearing soil. Once installed, the pier will support and, if needed, lift the foundation back to its proper elevation. This crucial step ensures long-term stability and prevents further cracking or shifting inside the home.

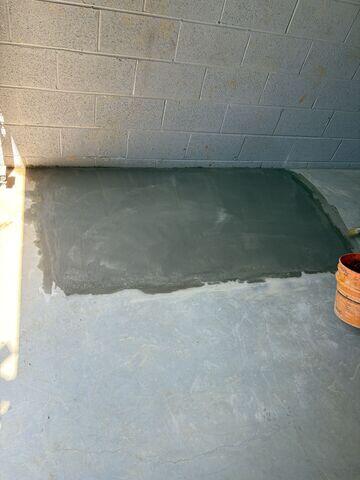

Concrete Repaired and Restored Post-Pier Installation
After installing the push piers beneath the foundation, we carefully removed and replaced the affected concrete slab. This photo shows the completed concrete patch, where the interior floor has been restored to its original appearance. Not only does this create a clean and seamless finish, but it also ensures that the previously unstable area is now secure and level. This finishing step completes the interior structural portion of the project, following the issues shown in Photos 1 and 2.

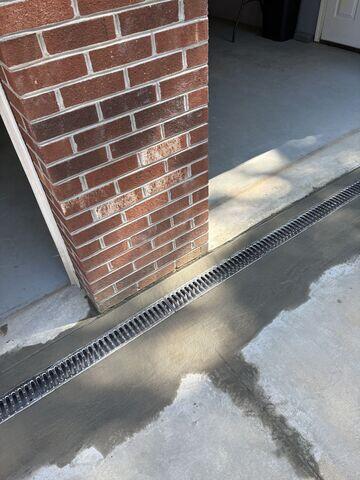

TrenchDrain Installation for Surface Water Protection
To further protect the home from future water intrusion, we installed a TrenchDrain at the garage entrance. This system captures surface water before it can enter the home, redirecting it away from the foundation and interior slab. Set neatly into freshly poured concrete, the drain blends into the space seamlessly while adding powerful protection against flooding and erosion. This step complements the foundation stabilization work shown in earlier photos, ensuring the structure remains dry and secure from both above and below.

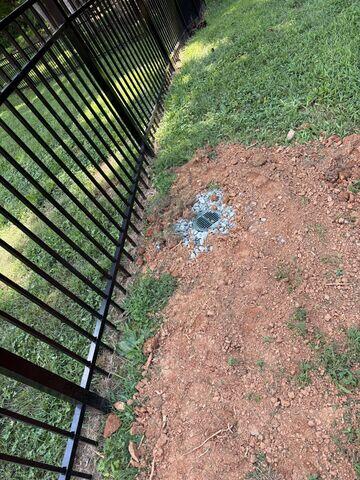

Buried Downspout & LawnScape Outlet for Final Water Redirection
To complete the waterproofing system, we installed a buried downspout leading to this LawnScape outlet. This discreet exit point allows rainwater collected from the roof to be safely discharged away from the home's foundation, preventing soil erosion and water pooling around the structure. The addition of gravel ensures proper filtration and stabilization at the outlet. This final component works in tandem with the TrenchDrain (Photo 4), forming a complete water management system that protects the home from both roof runoff and surface water.
