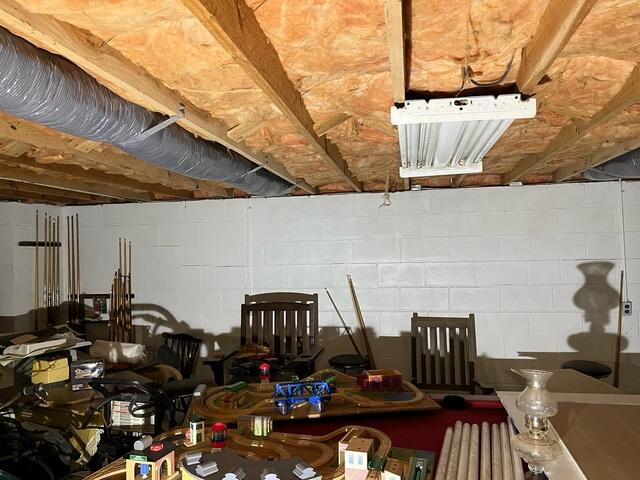

Early Signs of Structural Stress in the Basement - Jonesville, NC
n this first image, we see a basement showing clear symptoms of wall movement and moisture exposure. The block wall displays discoloration and staining along the bottom course a common indicator of water seepage through the foundation. Additionally, the exposed ceiling insulation and ductwork highlight that this space is vulnerable to humidity, which can worsen moisture problems over time. These early symptoms are exactly why the homeowner reached out. Left unaddressed, moisture and wall stress can lead to bowing walls, cracking, and musty odors. As we move through the next photos, you'll see how our team diagnosed the root issues and installed long-term structural and waterproofing solutions to protect this home.

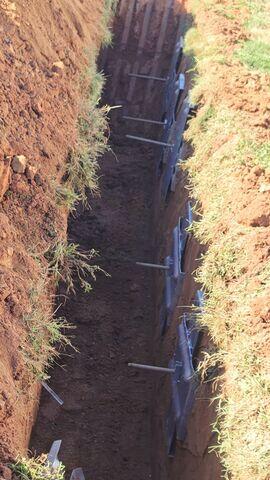

Excavation Reveals Severe External Pressure Against Foundation Walls
In this image, our team has fully excavated the exterior wall to expose the source of the foundation movement seen inside the home. The deep trench shows just how much soil weight and hydrostatic pressure was pushing against the block walls. Over time, this pressure causes walls to crack, bow inward, and lose structural strength all symptoms the homeowner was already experiencing. By opening up the exterior, we were able to install GeoLock Earth Anchors, which you can see positioned along the wall. These anchors extend out into stable soil, creating a powerful counterforce that permanently stabilizes the foundation and prevents further inward movement.

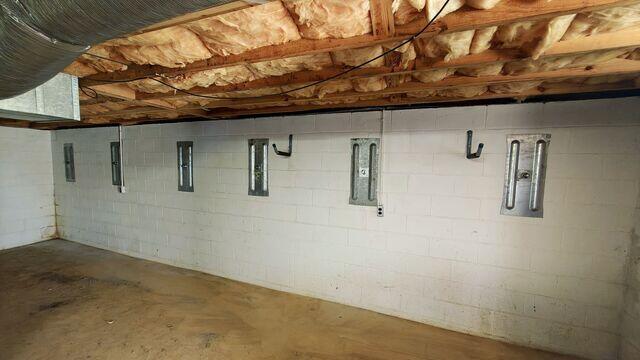

GeoLock® Wall Anchors Installed to Stabilize Bowing Foundation Walls
This photo shows the interior side of the foundation after installing GeoLock Wall Anchor plates. These steel plates are connected to the earth anchors you saw in the previous image, forming a complete stabilization system. The wall was showing signs of inward bowing, cracking, and long-term soil pressure, which is why anchoring was necessary. GeoLocks work by creating a strong brace that counteracts the external force pushing in on the foundation. Over time, they can even help straighten the wall back toward its original position.

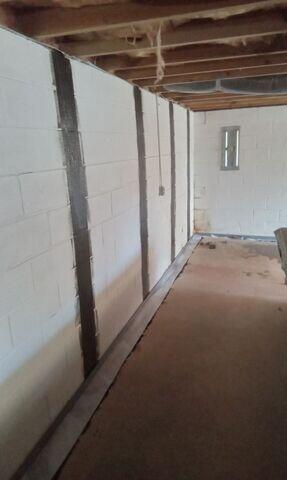

EverBrace System Installed for Full Wall Restoration and Support
In this step of the project, we've installed the EverBrace Wall Restoration System, shown here as the dark vertical panels along the foundation wall. This system is used when a wall has experienced more advanced structural damage than anchoring alone can correct. The original symptoms bowing, cracking, and long-term soil pressure indicated that the wall needed full-surface reinforcement. EverBrace works by creating a rigid, permanent "new wall" inside the basement. The steel panels and rigid foam backing transfer the load from the failing wall to the new system, restoring the stability the structure had lost. You can also see the beginning of the interior drainage system being installed along the floor. This addresses the moisture issues we saw earlier, ensuring water is captured and moved to the sump system instead of seeping through the block wall.

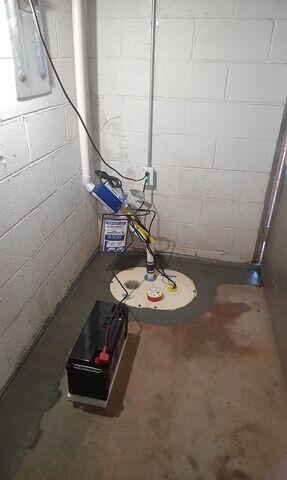

TripleSafe Sump System Installed to Control Groundwater Intrusion
This image shows the installation of the TripleSafe Sump Pump System, a critical solution for addressing the groundwater issues we identified earlier in the project. The basement had clear signs of moisture intrusion staining on the block walls and damp areas along the floor which indicated that water was entering through the foundation and collecting inside. By installing a TripleSafe system, the home now has three levels of protection: a primary pump for everyday water removal, a secondary pump for heavy volumes or pump failure, and a battery backup pump that continues working even during power outages. The freshly poured concrete around the basin seals the WaterGuard drainage system in place, ensuring that any water entering the home is captured and directed safely into the sump. This upgrade not only keeps the basement dry but also helps protect the structural repairs, such as the GeoLocks and EverBrace system, from future moisture damage.

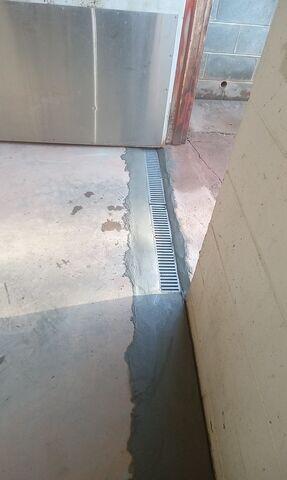

TrenchDrain Installed to Stop Surface Water from Entering the Basement
This final image shows the installation of a TrenchDrain system placed directly at the exterior entry point one of the main areas where water was finding its way into the basement. Earlier signs of moisture along the walls and floor confirmed that surface water was entering under the door and flowing across the concrete slab. To stop this, our team cut a drainage channel into the floor and installed the TrenchDrain grate, which ties directly into the new interior WaterGuard system. Now, any water that tries to enter through this doorway is immediately captured and directed to the TripleSafe sump pump, preventing puddling, dampness, and future water damage. This upgrade ensures the basement stays dry, even during heavy rains or when surface runoff collects against the home.
